High Voltage Testers
Leading Manufacturers, Exporters and Trader of 100kv 10mA High Voltage Tester, 30kv 30mA High Voltage Tester, 70kv 40mA High Voltage Tester, AC-DC High Voltage Tester, QHBT High Voltage Tester and QHBT-1 High Voltage Tester from Nashik.
| Business Type | Manufacturer, Exporter, Trader |
| Click Here to View Catalogue |  View |
| Country of Origin | India |
| Input | 230 V, 1ph.,50 Hz A.C. |
| Output | 0 – 100 KV AC Variable |
| Leakage Current | 10 mAmp (settable) by rotary switch |
| Duty | Intermittent (I.e; 1 Minute Withstand Test) |
| Cooling | Oil Cooled |
Preferred Buyer From
| Location | Anywhere in India |
Parameters :
- I) kilo Volt meter II) leakage current (mA) meter along with Selector switch to select
- Leakage current : 10mAmp.
- Test ON Indication, Over current relay with CT & other required Contactors & accessories provided in Panel.
- Zero Start Facility
- Both KV Meter & mA Meters
| Business Type | Manufacturer, Exporter, Trader |
| Click Here to View Catalogue | View |
| Country of Origin | India |
| Test Voltage | 0 30KV AC |
| Short Circuit Current | 30mA |
| Display | Analog Meters for Voltage and Current |
| Accuracy | +2% of reading + 2 digit |
| Timer | 015 min |
| Protection | Zero Start, Over Load Tripping |
| Power Supply | 230VAC + 10%, 50Hz |
Preferred Buyer From
| Location | Anywhere in India |
Measurements
- Output voltage in KV on the LED display / Analog Meter
- Leakage current in mA on the LED display / Analog Meter
- Suitable Time with digital display.
Protections
- Zero start interlock for HV ON
- Over current trip
- Fuse in the input side
- Over voltage trip
| Business Type | Manufacturer, Exporter, Trader |
| Click Here to View Catalogue | View |
| Country of Origin | India |
| Input | 230 V, 1ph.,50 Hz A.C. |
| Output | 0 – 70 KV AC Variable |
| Leakage Current | 40 mAmp (settable) by rotary switch |
| Duty | Intermittent (I.e; 15 Minute Withstand Test) |
| Cooling | Oil Cooled |
Preferred Buyer From
| Location | Anywhere in India |

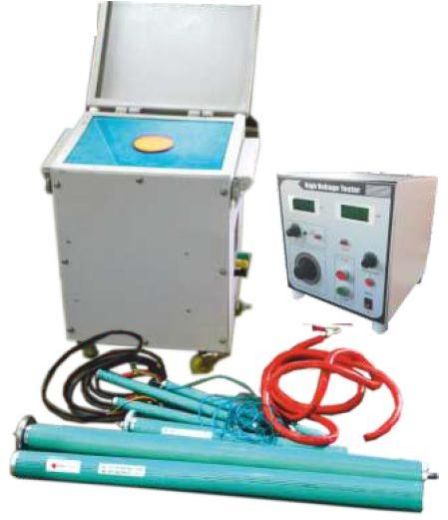

| Business Type | Manufacturer, Exporter, Trader |
| Click Here to View Catalogue | View |
| Country of Origin | India |
| Leakage Current | 5mA / 10mA / 20mA AC/DC |
| Indication | Analog / Digital meters for indicaon of test voltage (kV)and leakage current (mA) |
| Power Supply | 230V AC, 50Hz |
| Operating Temperature | 50 C to 450C |
| Weight | < 60 Kg max. Pls. refer to relevant model |
Preferred Buyer From
| Location | Anywhere in India |
Features :
- Portable, easy to carry and use on field.
- Safety Protections like zero voltage interlock and automatic discharge incorporated
- Mounted on castors for ease of transport.
- Continuous, stepless adjustable AC /DC Voltage
- Tests can be performed in accordance with relevant regulations and standards
- Allows easy intergration for van mounted operation and installation into small vehicles.
| Business Type | Manufacturer, Exporter, Trader |
| Click Here to View Catalogue | View |
| Country of Origin | India |
| Input | 415 V, 2ph.(of 3 ph.),50 Hz A.C.OR 230V Single Phase |
| Output | upto 0 – 100 KV AC/DC Variable |
| Leakage Current | upto 100 mAmp (settable) by rotary switch in steps of 25-50-100 mA |
| Duty | Intermittent (I.e; 1 Minute Withstand Test) |
| Cooling | Oil /Air Cooled |
Preferred Buyer From
| Location | Anywhere in India |
“QUADRANT” make ‘Automatic AC/DC HIGH VOLTAGE TEST SET’ are ideal to test dielectric strength of different insulating materials , motor winding transformers, Ceramic HV insulators, cables and different electrical components. It is useful in transformer manufacturing industries, HV motor manufacturing units, cables and insulator industries etc.
| Business Type | Manufacturer, Exporter, Trader |
| Click Here to View Catalogue | View |
| Country of Origin | India |
| Test Voltage | 05KV AC / Custom requirement |
| Short Circuit Current | 30mA / 50mA / Custom requirement |
| Accuracy | +1.5% of reading + 5 digit |
| Resolution | 0.01KV |
| Display | 3 ½ Digit LED Display |
| Timer | 099 Sec. |
| Protection | Zero Start, Over Load Tripping |
| Power Supply | 230VAC + 10%, 50Hz |
Preferred Buyer From
| Location | Anywhere in India |
Features :
- Suitable for AC breakdown
- Digital Voltage/ Current Display
- Zero Start, Over Load Tripping Protection
- Builtin timer
- Robust design, easy to operate
- User Selectable Tripping Current
- Test ON Indicator
- Audio Indicator (optional)
